Name: PC/ABS-FR Filament
Brand: Qidi Tech
Price: 62.99 EUR
Availability: InStock
Rating: 5 (1 reviews)

[Qidi X-CF Pro, speziell für den Druck von Kohlefaser und Nylon entwickelt] - [QIDI Online Shop DE]

€62,99

Imposte incluse. Spedizione calcolata alla cassa.

Product Features

Excellent Flame-resistant
Tough and Durable
Comes with High Temperature Spool
Diameter: 1.75mm +/- 0.02mm

Cautions for Use

Enclosure Printers Required
Active chamber heating Required

Weight

1kg

Quantità

In magazzino, pronto per la spedizione
Inventario in arrivo

[{"id":41231307472979,"title":"1kg","option1":"1kg","option2":null,"option3":null,"sku":"PC-ABSNAT","requires_shipping":true,"taxable":false,"featured_image":{"id":33743055618131,"product_id":7116581568595,"position":3,"created_at":"2023-12-19T13:36:58+08:00","updated_at":"2024-08-05T09:12:37+08:00","alt":"[Qidi X-CF Pro, speziell für den Druck von Kohlefaser und Nylon entwickelt] - [QIDI Online Shop DE]","width":1600,"height":1600,"src":"\/\/eu.qidi3d.com\/cdn\/shop\/files\/PC-ABS-FR_80b1b511-99e6-49cb-9b68-99ffefcf43e7.jpg?v=1722820357","variant_ids":[41231307472979]},"available":true,"name":"PC\/ABS-FR Filament - 1kg","public_title":"1kg","options":["1kg"],"price":6299,"weight":1300,"compare_at_price":6299,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"[Qidi X-CF Pro, speziell für den Druck von Kohlefaser und Nylon entwickelt] - [QIDI Online Shop DE]","id":26164837843027,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/eu.qidi3d.com\/cdn\/shop\/files\/PC-ABS-FR_80b1b511-99e6-49cb-9b68-99ffefcf43e7.jpg?v=1722820357"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

QIDI PC/ABS FR 3D Printer Filament

QIDI Flame Retardant PC/ABS alloy 3D Printing Filament. QIDI PC/ABS-FR is an excellent flame-resistant material which is based PC/ABS. It is safer and more environmentally friendly, while still maintaining the excellent mechanical properties and heat resistance of PC/ABS

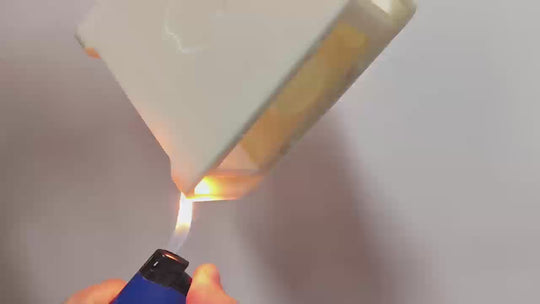

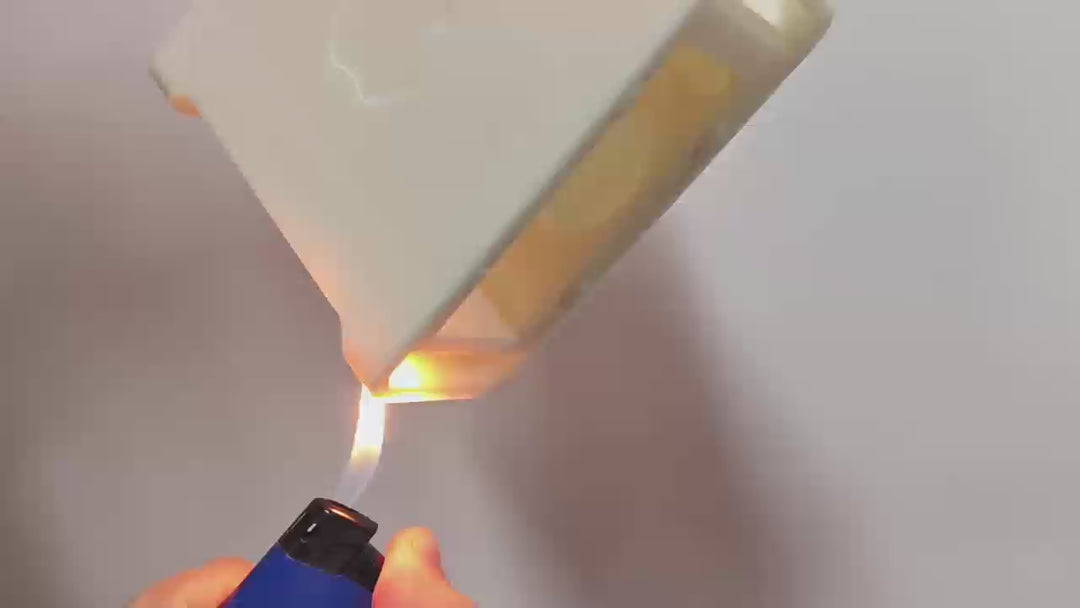

Excellent Flame-resistant And Self-extinguishing Performance

By adding non-halogen flame retardant, PC/ABS has excellent self-extinguishing performance, and the flame-retardant grade can reach UL94 V-0 level (2mm).

Safe and non-toxic after burning

QIDI PC/ABS FR compared with materials with halogen flame retardants, QIDI PC/ABS-FR will not release much smoke and toxic gases after burning.

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	QIDI PEI Plate, QIDI Smooth Plate and Glass Plate	PC Plate
Hotend	Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm) Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm)	Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm)
Glue	PVP glue/ 3D LAC adhesive spray	/

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	70-80 °C，4-6 h
Printing and Keeping Container's Humidity	< 15% RH (Sealed, with Desiccant)
Nozzle Temperature	260 - 280 °C
Bed Temperature (with Glue)	70-80 °C
Chamber Temperature	60-80 °C
Printing Speed	< 30-120 mm/s

Physical Properties
Density	1.08 g/cm³
Water absorption	2.10 %
Heat Deflection Temperature	102 °C
Melting Temperature	250 °C
Melt Index	4 g/10 min

Mechanical Properties
Tensile Strength	40.10±0.14 MPa
Breaking Elongation Rate	3.06±0.30 %
Bending Modulus	2041.17±25.67 MPa
Bending Strength	67.79±0.47 MPa
Impact Strength	19.90±1.65KJ/m2

Downloads

Filament TDS

Filament MSDS

Printing Tips

• PC/ABS material in the printing process needs to have a higher ambient temperature to help release the residual stress in the molding process of the parts, in the printing process, please keep the printer closed to avoid warping and cracking of the printed parts. Please keep the printer closed during the printing process to avoid warping and cracking of the printed parts. If the device has a heating chamber function, it is recommended to set the heating chamber temperature at 60-80°C. If the device is equipped with a heating chamber, it is recommended that the temperature of the heating chamber be set between 60-80°C.
For more details please refer to: Filament Guide on WIKI.

Vacuum Aluminum Foil Packaging

According to the test, the water vapor transmission rate of ordinary sealed packaging is 4.76%, while the water vapor transmission rate of vacuum aluminum foil packaging we use is only 0.014%. It can be seen that vacuum aluminum foil packaging is more water-resistant.
