Overveiw:

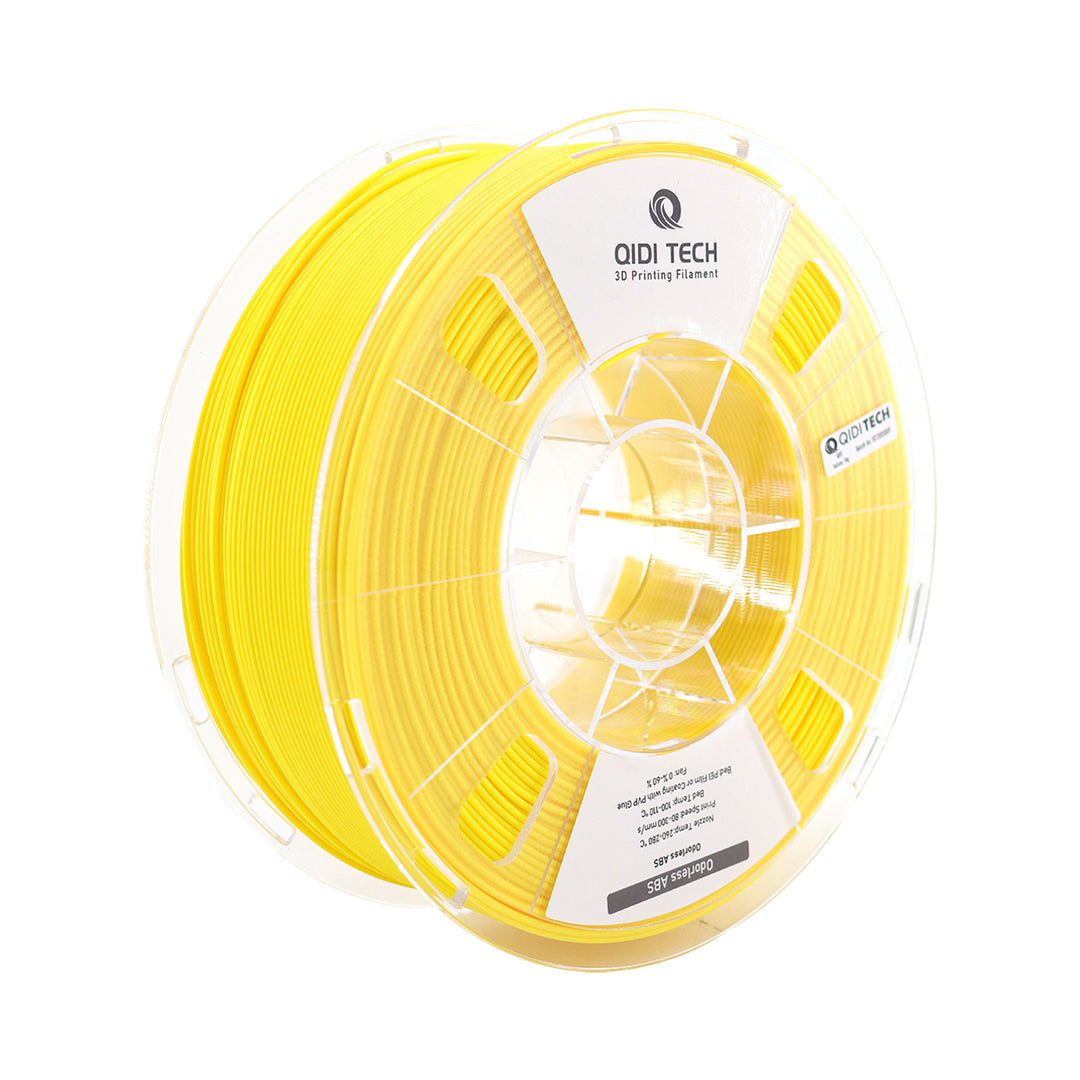

Qidi Tech Odorless-ABS Rapido Filament is an ABS-based filament specially developed for 3D printing. Compared with other ABS filaments, it has a much lower odor and excellent mechanical properties.
QIDI Tech ABS is a high-strength ABS-based 3D printing filament with outstanding mechanical properties. The tensile strength of its 3D printed parts in the XY axis direction can be close to 40MPa.
Therefore, QIDI Tech ABS is ideal for printing functional prototypes, jigs and low-volume production parts.
The main raw material of QIDI Tech Odorless-ABS is an ABS resin synthesized by continuous bulk polymerization technique. Thanks to this advanced production process, the residual amount of solvents and monomers used in the production process in the final ABS product is so low that the filament has a low odor during printing.
QIDI Tech ABS can be used together with QIDI S-White Quick-Remove Support Material to solve the poor surface of complex model above supports.
Recommended printing conditions:
Recommended Nozzle Diameter |
≥0.2 mm |
Print speed |
80-300 mm/s |
Recommended build surface treatment |
PEI Film |
Build plate temperature |
100-110°C |
Raft separation distance |
0.16-0.18 mm |
Cooling fan speed |
0%-60% |
Retraction distance |
1-5 mm |
Retraction speed |
1800-3600 mm/min |
Recommended Support Material |
QIDI S-White Quick-Remove Support |
Additional Suggestions: |
|
1.Compared with PLA, PETG and other materials, ABS materials need a higher chamber temperature to help release the residual stress during the printing process. Please keep the printer chamber closed during the printing process. It can effectively avoid printed parts from warping and cracking. If the device has a heated chamber, it is recommended to set the temperature of heated chamber between 55-80°C. |
|
2. If the ABS filament has been unpacked for a long time and the printing quality starts to degrade during the printing process, please dry the filament at 70-80°C for 4-6 hours before printing. |
|
3. Although Qidi Tech Odorless-ABS has much less odor compared with similar products, it is still recommended to place the printer in a well-ventilated area during printing. |
|
