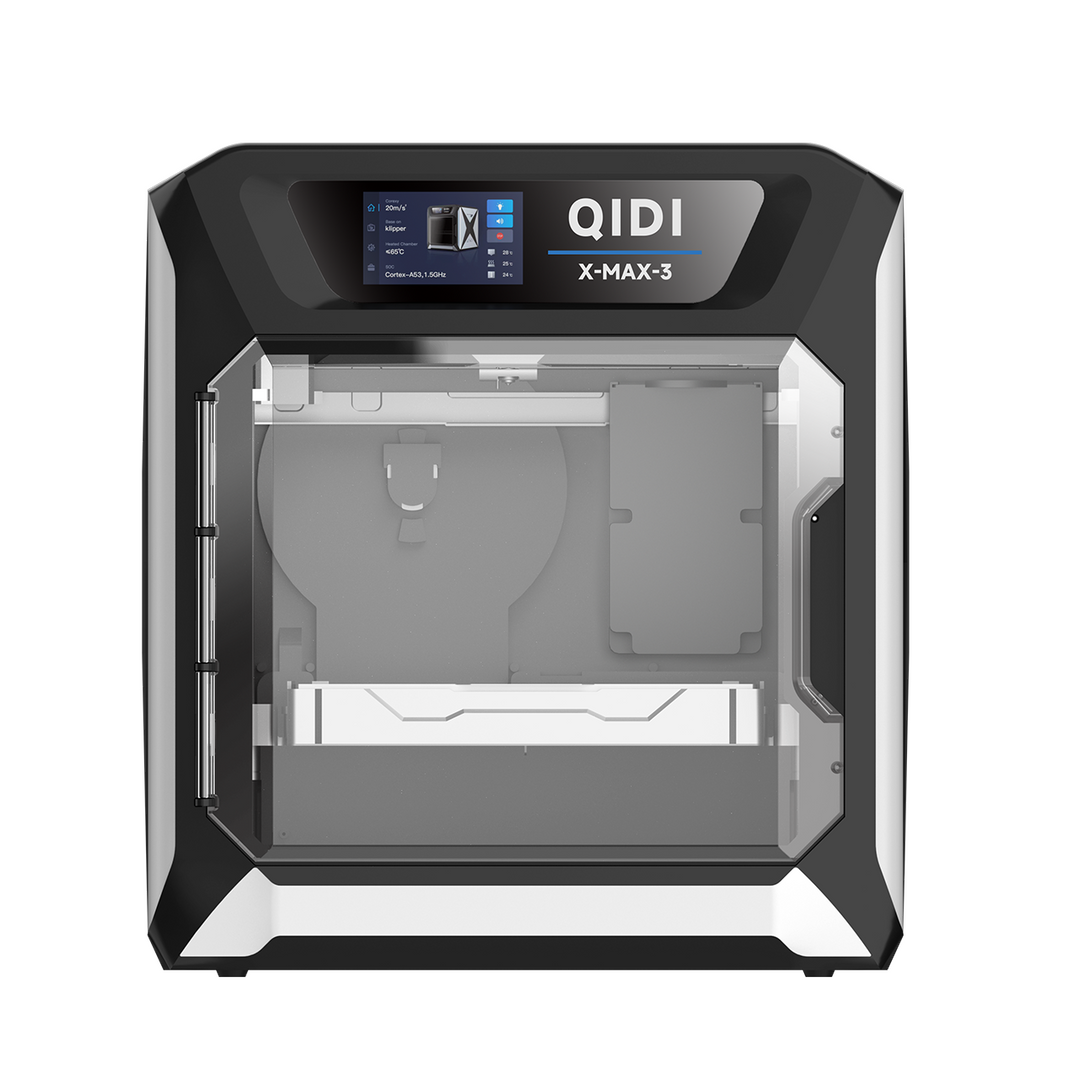

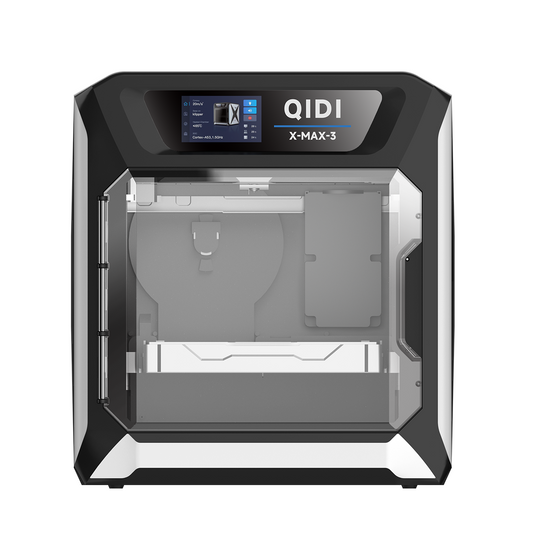

Qidi Tech X-Max 3 3D Printer

Regular price €1.099,00 Sale price€949,00
/
Tax included. Shipping calculated at checkout.
VAT included.

Ship from

Product Features

  • Print Speed up to 600mm/s
  • Large size 325*325*315mm
  • Max 65℃ active chamber heating
  • All-around performance right out of the box

Order Info:

  • Ship from Local Warehouses:
          EU - in stock, ship in 1-3 business days, Free shipping.
    all-round 3d printer

    — The best industrial grade FDM high speed all-round 3d printer —

    QIDI Tech
    X-MAX 3

    -Faster Speed 600mm/s
    -Bigger than bigger
    -325*325*315 mm
    -High-Flow 35mm³/s
    -Acceleration: 20000mm/s²

    fast printing

    MAX 3 configures the above technologies for truly fast printing

    KLIPPER

    KLIPPER

    64-bit
    Processor

    Cortex-A53
    Main frequency 1.5GHz, 8G-EMMC and 1G DDR3

    New All-metal Frame
    New All-metal Frame
    Ultra-stable, reinforced with metal crossbeams at the bottom, resistant to deformation.
    hollow steel linear shaft
    High-grade hardness steel linear hollow optical axis
    Improved surface straightness, and a 60% lower error deflection.
    Highly durable and No need for frequent maintenance.
    Typically last a lifetime without the need for replacement.
    CoreXY Structure
    CoreXY Structure
    Reduce the motion Inertia and improve the motion speed.
    TMC2209 silent drive less noise.
    New cooling system
    New cooling system
    Reducing the risk of clogs and ensuring smooth extrusion.
    9.5:1 gear ratio
    Steadier, power, faster extrusion.
    Two Sets of Hot End
    Two Sets of Hot End
    Copper alloy nozzle for better thermal conductivity, smooth printing and to be more durable.
    Hardened steel nozzle for abrasive materials, and long term usage.
    Both 350℃ Max Print Temp.
    Temperature Controlled Chamber
    Temperature Controlled Chamber
    And Drying Box
    Active Heating Device
    Maximum Temp 65℃
    High efficiency printing PET-CF,PAHT-CF etc
    Chamber circulation fan with activated carbon air filter.
    No Layer Separation
    No Layer Separation
    The higher the temperature in the heated chamber, the larger the material range that can be printed. The heated chamber ensure that the part is built uniformly without the generation of internal stresses.
    No Warping
    Resonance Compensation
    High Performance Materials

    We Only Produce High Performance Materials

    Industrial Grade Materials

    -Professional Printing Industrial Grade Materials-

    Automatic Leveling
    Automatic Leveling
    Klipper Adaptive Meshing and Purging, fast ensure flawless first layer for every 3D print.
    Flexible HF Plate
    Flexible HF Plate
    Excellent adhesion,
    No warping trouble,
    Easy to remove the prints.
    Excellent User Experience

    Excellent User Experience

    The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started!
    We also provide the Fluidd Console.

    XMAX3-Accessory XMAX3-Accessory-m

    For more information, please visit our official wiki(wiki.qidi3d.com).

    Specifications

    Machine Name
    X-Max3 X-Plus3 X-Smart3
    Technology FDM
    Build Volume
    (W×D×H)
    325*325*315mm 280*280*270mm 175*180*170mm
    Dimensions
    (W×D×H)
    553*553*601mm 511*527*529mm 370*362*397mm
    Net weight
    (kg)
    30.2 24.3 10.5
    Printing Speed ≤600mm/s ≤500mm/s
    Extruder Flow: 35mm³/s
    @PLA Matte(Model:150*150mm single wall; Material: PLA Rapido Matte;Temperature: 240℃)
    30mm³/s
    Extruder Temp ≤350°C ≤300°C
    Hotend (Included) Copper alloy nozzle hotend
    For Common materials
    Brass Nozzle
    hotend
    Hardened steel nozzle hotend
    For Abrasive materials
    Auxiliary Part Cooling Fan
    Chamber Temperature Control 65°C Independent Chamber Heating 65°C Independent Chamber Heating
    Chamber Circulation Fan
    With Activated carbon air filter
    Chamber Circulation Fan
    Screen 5.0 inch 4.3 inch
    800*480 touch screen 480*272 touch screen
    Seal print Dryer Box + Desiccant Optional
    Connection Options 150M 2.4G Wi-Fi
    USB Flash Drive/Ethernet Cable
    150M 2.4G Wi-Fi
    USB Flash Drive
    Rated Power 900W 800W 350W
    Recommended Filament PAHT-CF,PET-CF,PA12-CF PLA
    Compatible filament PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc. ABS, ASA, PETG, TPU etc
    Structure CoreXY
    Z Axis: Double Z axis
    X axis High-grade hardness steel linear hollow optical axis Hardened Wear-resistant Carbon Fiber Rod
    Firmware: Klipper
    Printing Acceleration: 20000mm/s²
    Printing Accuracy: ±0.1 mm
    Filament diameter: 1.75mm
    Bed Leveling: Automatic Leveling
    Extruder transmission ratio 9.5:1
    Hot end: Ceramic Heating Core
    Extruder: High-flow Direct Drive Extruder
    Nozzle diameter: 0.4mm (0.2,0.6,0.8mm Optional)
    Hot bed temperature: ≤120℃
    Printing Plate: Double-Sided Flexible Magnetic Plate
    Filament Detection: Yes
    Resonance Compensation: Yes
    Pressure Advance: Yes
    Voltage: 100-240VAC, 50/60Hz
    Main Processor: Cortex-A53,64-bit Processor
    1.5Ghz,8G-EMMC,1G DDR3
    Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
    Operating System: Windows, MacOS, Linux
    Assembled Assembled and First Print within 10 minutes
    Learn more Learn more Learn more
    Machine Name
    X-Max3 X-Plus3 X-Smart3
    Technology:FDM
    Build Volume (W×D×H mm)
    325*325*315 280*280*270 175*180*170
    Dimensions (W×D×H mm)
    553*553*601 511*527*529 370*362*397
    Net weight (kg)
    30.2 24.3 10.5
    CoreXY
    Z Axis:Double Z axis
    X axis: High-grade hardness steel linear hollow optical axis X axis: Hardened Wear-resistant Carbon Fiber Rod
    Firmware:Klipper
    Printing Speed
    ≤ 600mm/s ≤ 500mm/s
    Extruder Flow:
    35mm³/s
    @PLA Matte(Model:150*150mm single wall; Material: PLA Rapido Matte;Temperature: 240℃)
    30mm³/s
    Printing Acceleration:20000mm/s²
    Printing Accuracy:± 0.1 mm
    Extruder Temp
    ≤350℃ ≤300℃
    Filament diameter:1.75mm
    Bed Leveling: Automatic Leveling
    Extruder transmission ratio:9.5:1
    Hot end: Ceramic Heating Core
    Extruder:High-flow Direct Drive Extruder
    Nozzle
    Copper alloy nozzle
    (For Common Filaments)
    Hardened steel nozzle
    (For Abrasive Filaments)
    Brass Nozzle
    Nozzle diameter
    0.4mm (0.2,0.6,0.8mm Optional)
    Hot bed temperature: ≤120℃
    Printing Plate:Double-Sided Flexible Magnetic
    Plate
    Auxiliary Part Cooling Fan
    Chamber Temperature Control
    65°C
    Independent Chamber Heating
    Chamber Circulation Fan
    With Activated carbon air filter
    Chamber Circulation Fan
    Screen
    5.0 inch
    800*480 touch screen
    4.3 inch
    480*272 touch screen
    Seal print
    Dryer Box + Desiccant Optional
    Connection Options
    150M 2.4G Wi-Fi
    USB Flash Drive/
    Ethernet Cable
    150M 2.4G Wi-Fi
    USB Flash Drive
    Filament Detection: Yes
    Resonance Compensation: Yes
    Pressure advance:Yes
    Voltage:100-240VAC, 50/60Hz
    Rated Power
    900W 800W 350W
    Main Processor:Cortex-A53,64-bit Processor
    1.5Ghz,8G-EMMC,1G DDR3
    Slicer
    QIDI Slicer and other third-party software, such as
    Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
    Operating System: Windows, MacOS, Linux
    Recommended Filament
    PAHT-CF,PET-CF,PA12-CF PLA
    Compatible filament
    PLA, ABS,
    ASA, PETG, TPU, PC, UltraPA, Nylon, etc.
    ABS, ASA,
    PETG, TPU etc
    Assembled and First Print within 10 minutes
    Learn more Learn more Learn more
